Our Price: $34.50

Coupler Sample Test Kit


Product Manufacturer: Kadee
Manufacturer Model: 13
Store Item Number: KAD13
Quantity In Stock: 1

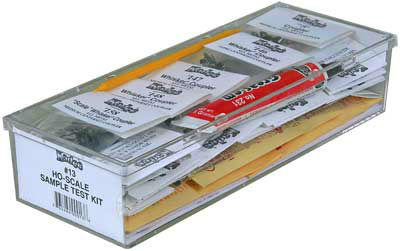

Coupler Sample Test Kit
  • The sample test kit contains a variety of sample couplers and other necessary components to identify and properly install Kadee® couplers on locomotives & rolling stock. Without having to purchase full size packages of Couplers, Gear Boxes & Adaptors, Springs, Washers, & Shims that may be necessary for the Coupler Conversions.
  • Contains: HO-Scale Conversion list, 20 & 30 Series Instructions, Whisker Coupler Instructions & sample size packages of products listed below.

    • Couplers - Metal

  • NO.5® Medium Centerset - Metal - One Pair
  • 141 Whisker® Long Underset - Metal - One Pair
  • 142 Whisker® Medium Overset - Metal - One Pair
  • 143 Whisker® Short Centerset - Metal - One Pair
  • 144 Whisker® Short Underset - Metal - One Pair
  • 145 Whisker® Short Overset - Metal - One Pair
  • 146 Whisker® Long Centerset - Metal - One Pair
  • 147 Whisker® Medium Underset - Metal - One Pair
  • 148 Whisker® Medium Centerset - Metal - One Pair
  • 149 Whisker® Long Overset - Metal - One Pair
  • 158 Whisker® “Scale” Medium Centerset - Metal - One Pair

    • Couplers - Plastic

  • 21/31 Long Underset - Plastic - One Pair
  • 22/32 Medium Overset - Plastic - One Pair
  • 23/33 Short Centerset - Plastic - One Pair
  • 24/34 Short Underset - Plastic - One Pair
  • 25/35 Short Overset - Plastic - One Pair
  • 26/36 Long Centerset - Plastic - One Pair
  • 27/37 Medium Underset - Plastic - One Pair
  • 28/38 Medium Centerset - Plastic - One Pair
  • 29/39 Long Overset - Plastic - One Pair

    • Gear Boxes & Adaptors

  • 212 Talgo Truck Adaptors: - One Sprue Work with all Couplers included in Test Kit and are standard with 20-Series couplers.
  • 213 20-Series Gear Box with Sleeves: - One Sprue Work with all Couplers included in Test Kit and are standard with 20-Series couplers.
  • 232 NO.5® Type Gear Box: - One Sprue Work with all Couplers included in Test Kit and are standard with NO.5® couplers & 20-Series couplers.
  • 233 30-Series Gear Box: - One Sprue Work with all Couplers included in Test Kit Except Whisker® Couplers and are standard with 30-Series couplers.
  • 234 Short NO.5® Type Gear Box: - One Sprue Work with all Couplers included in Test Kit and are standard with short shank 20-Series & 40-Series couplers.
  • 242 Whisker® Snap-Together Gear Box: - One Sprue Work with all Couplers included in Test Kit and are standard with Whisker® couplers.
  • 252 Small Whisker® Snap-Together Gear Box: - One Sprue Work with Only Whisker® Couplers. The 252 is the Whisker® equivalent to the 30-Series Gear Box.

    • Screws, Springs, Washers, & Shims

  • 208 .015” Red Fiber Washer - 10 Each
  • 209 .010” Gray Fiber Washer - 10 Each
  • 211 .010” & .015” Shims - 10 Each
  • 256 Plastic 2-56 x 1/2” Screws - 10 Each
  • 621 30-Series Torsion Spring - 10 Each
  • 622 Knuckle Springs - 10 Each
  • 634 NO.5® Type Centering Spring - 10 Each

    • Uncouplers

  • 321 Code 100 Between-The-Rails - One Pair
  • 322 Code 83 Between-The-Rails - One Pair

    • Tools

  • 231 Greas-em - One Each
  • 206 Coupler Height Gauge - One Each
  • 241 Dual Tool - One Each

Product Condition: New

Product Type: Model Train > Couplers
Scale: HO
