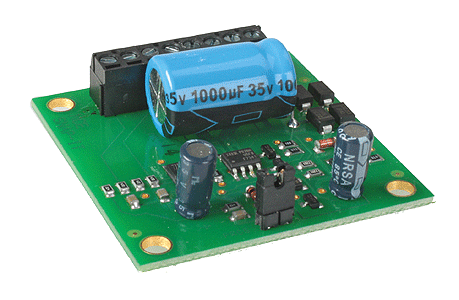

Snap-It Switch Machine Decoder

Snap-It Switch Machine Decoder

• Snap-It
• For use with most twin coil switch machines such as:
• Atlas, LifeLike, Peco, Bachmann, NJ, Rix, Kemtron and others
• Dimensions: 1.80" x 1.50" (46 x 38)

This is an accessory (switch machine) decoder

• Now with voltage double for more power
• Control for one twin coil switch machine
• Capacitive discharge for very low current draw of track power
• Snap-It supports the full range of DCC accessory addresses (1-2044
• Easy address programming, no need to connect it to programming track
• Simple hook up 2 wires to the track, 3 wires to switch machine
• Includes optional connections for "local" control push buttons
